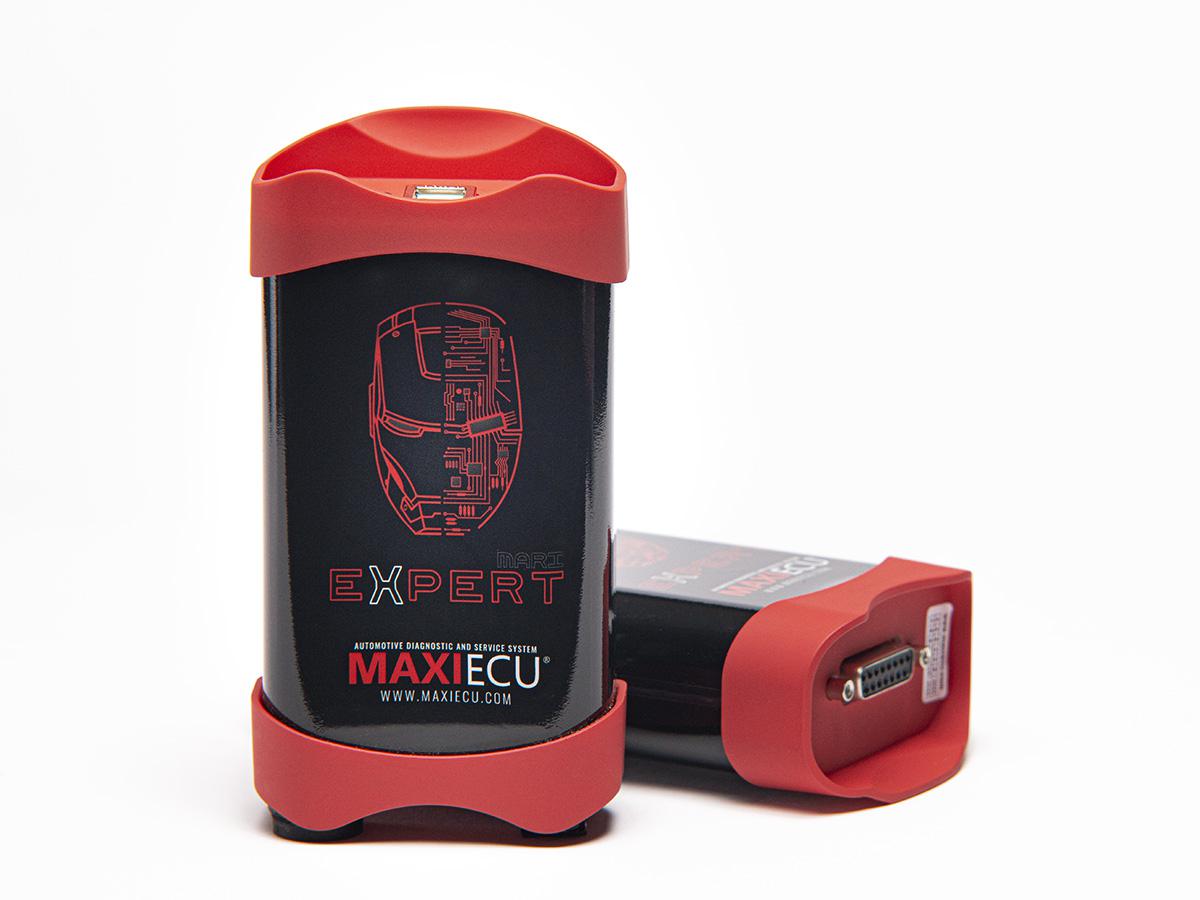

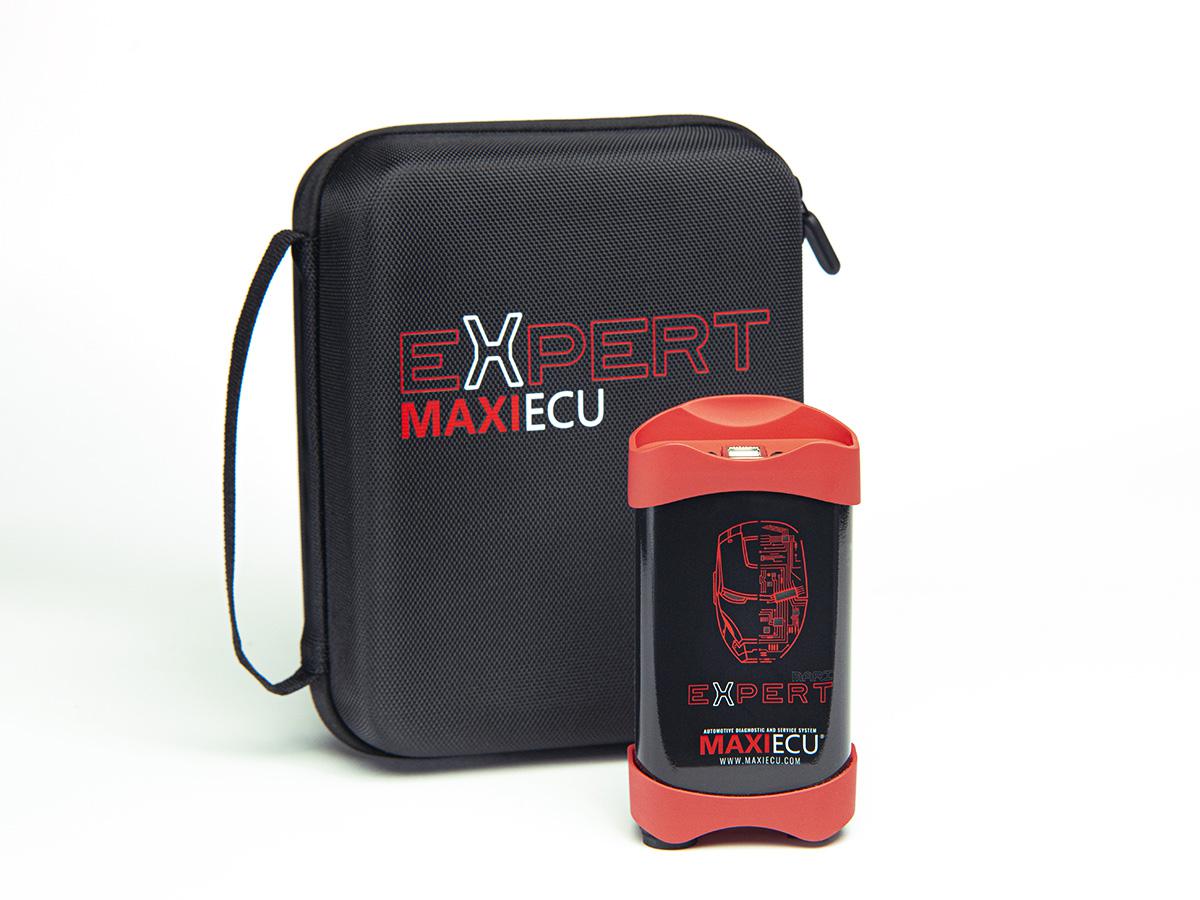

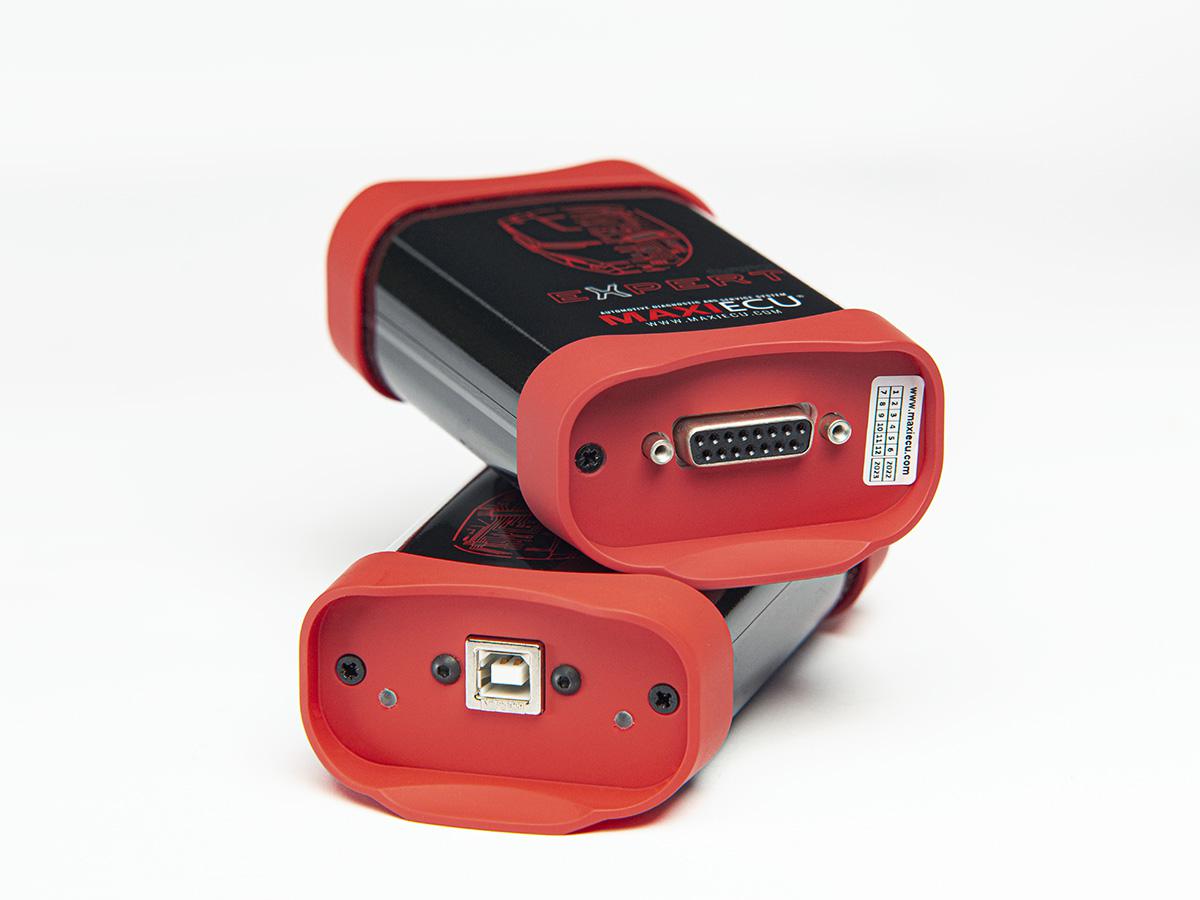

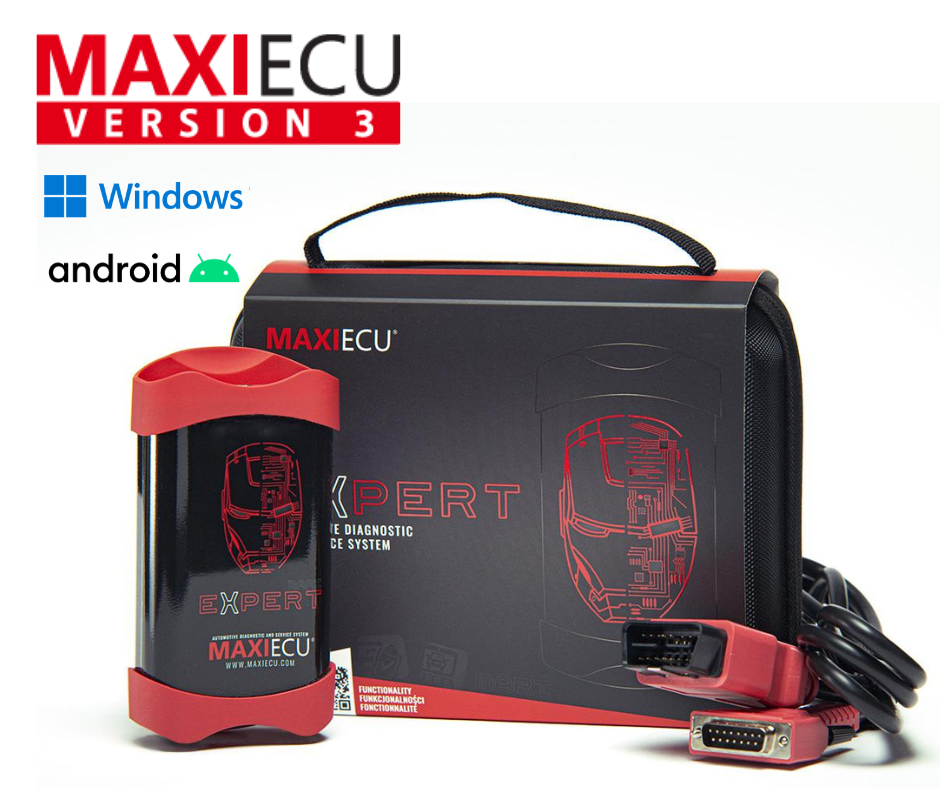

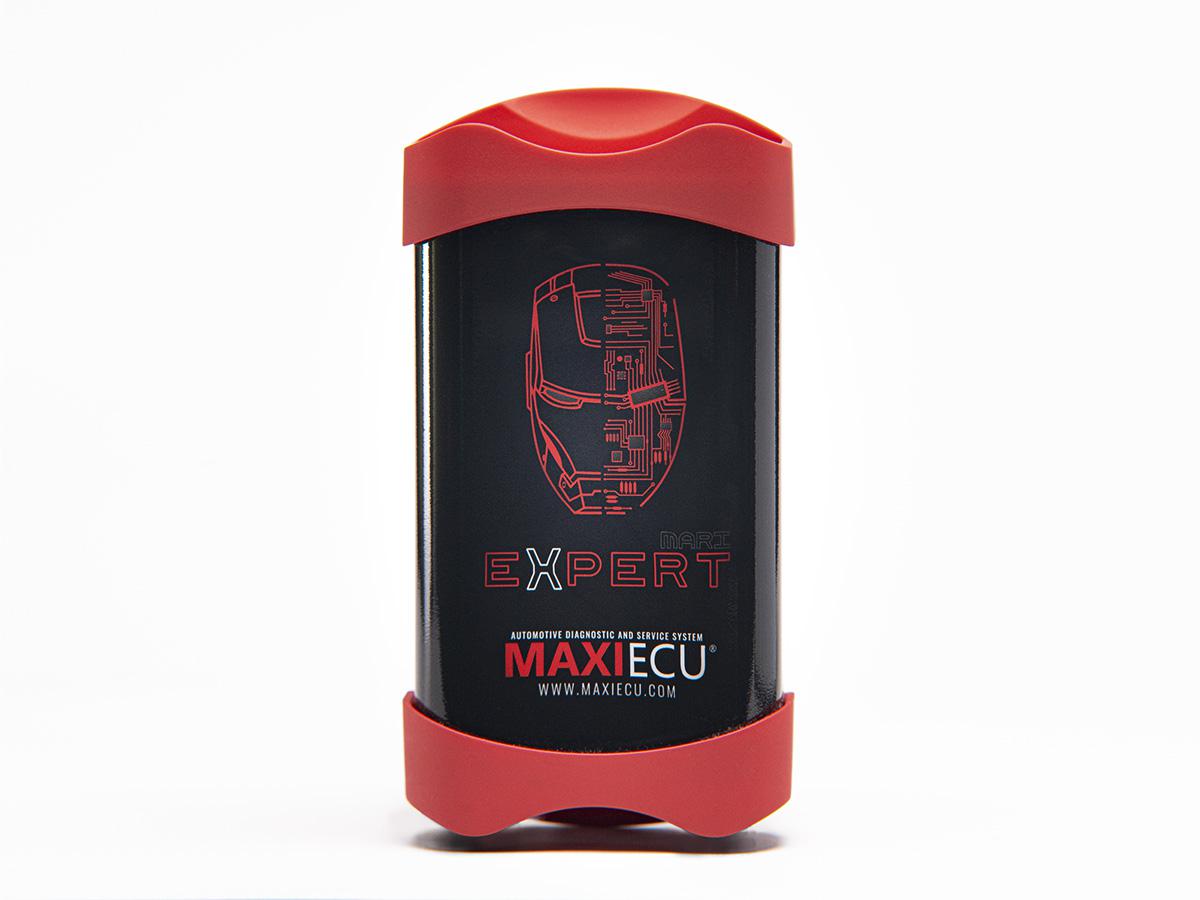

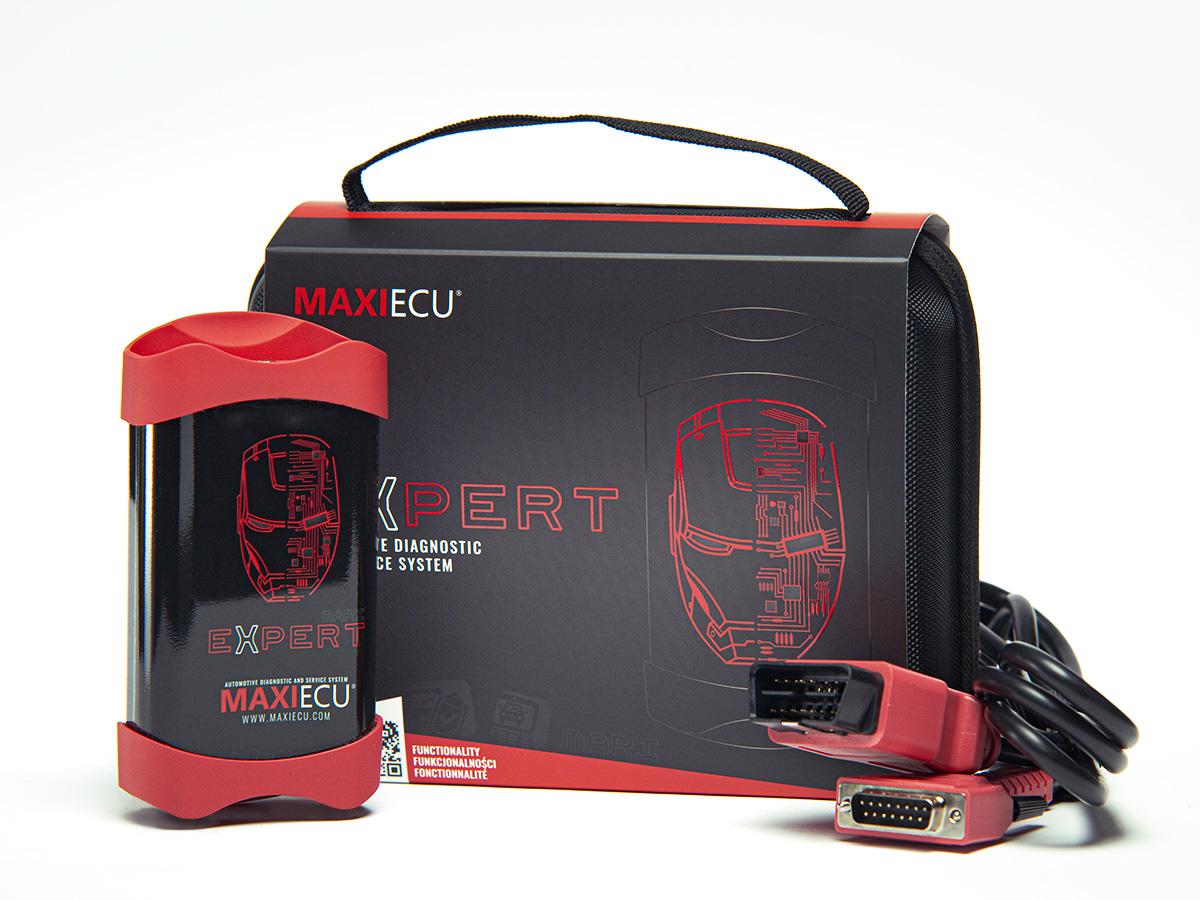

MAXIECU Expert

INTERFACE FOR PROFESSIONALS

• Expert is a device designed for difficult conditions.
• The strong, aluminum housing with ABS overlays effectively withstands falls, shocks and is an effective protection against dust and dirt.
• Fully electronic multiplexer, 13 double data bus lines. Xtensa® dual-core 32-bit processor.
• Wifi wireless connectivity – compatible with the 802.11 b/g/n standard and a maximum transmission speed of up to 150 Mbps.
• Bluetooth wireless connectivity – compatible with the v4.2 BR/EDR standard and the BLE specification.

A RELIABLE TOOL FOR EVERY CAR USER

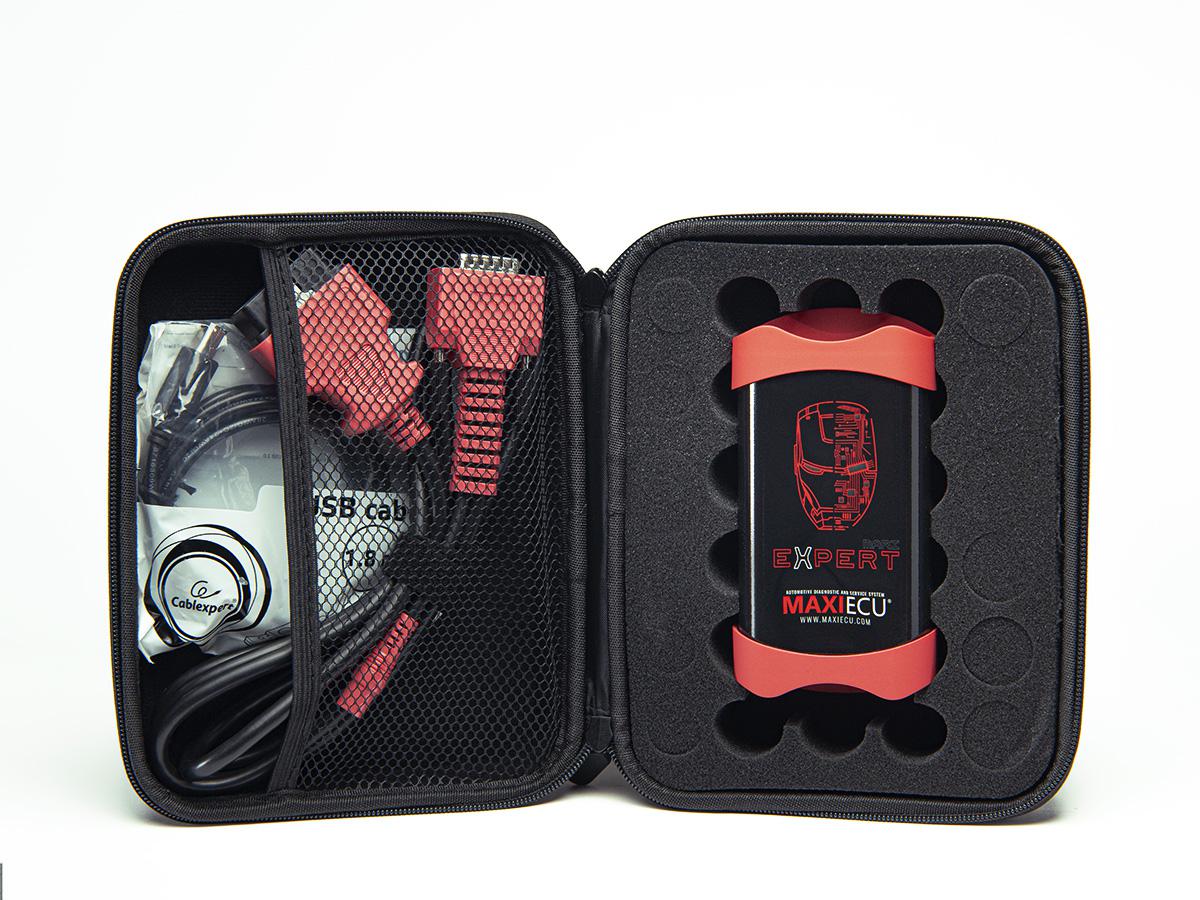

The components used allow for even more effective connection, stable data transmission and increased range of Bluetooth and Wifi communication. The set also includes a flexible USB cable with mounting brackets, thanks to which you can conveniently diagnose even when you are out of range of the Internet and using a device without bluetooth. The interface also has a built-in sound alarm informing about leaving the OBD socket in the socket after finishing work with the software.

FUTURE DESIGN

The Expert interface is adapted for automatic updating in accordance with market trends in the technologies used by car manufacturers. Thanks to the electronics used, it will also be possible to establish a connection not only in passenger cars, but also to diagnose vehicles with a 24V system.

ADVANCED FEATURES, INTUITIVE OPERATION

The range of available diagnostic options depends on the selected vehicle – check the available options for your car in the Functionality Finder. MaxiEcu is access to advanced service diagnostics, including: DPF regeneration, brake caliper reversing, ABS, AirBag, AT, ESP, Immo, UPS, BCM and many others. To obtain comprehensive information about the technical condition of the vehicle – all you need is a computer or tablet running on Windows. Intuitive operation also allows you to quickly start diagnostics without having to read lengthy instructions.

The range of available diagnostic options depends on the selected vehicle – check the available options for selected brands in the Functionality Finder.

DTC CODES

This function allows you to read faults codes recorded during the work of the vehicle’s electronic systems. Using it, you can easily find a reason for the irregularity by yourself, in quickly way. You can as well as clarify the location of the fault. An effective diagnosis definitely will reduced risk of costly and long-term repairs. The codes received in MaxiEcu are described, so there is no need to have professional knowledge to interpret them. Before erasing, you can also save the faults in the diagnostic report in .pdf format, thanks to which you will gain an overview of the fault history.

LIVE PARAMETERS

This option in MaxiEcu allows you to view many parameters in real time. At the same time, you can observe all parameters, obtaining their detailed values. Without additional tools or a need to open the hood, you are able to work out the technical details of the vehicle and find any irregularities in the operation of the system. The obtained parameter values are presented in a clear and comprehensible way. The data can also be automatically saved to a report that you can read in a spreadsheet.

GRAPHS

Graphs give us enable to make a visualization of the working of many parameters. Graphical presentation of the value is especially beneficial if you want to verify signals changing at a high frequency. Analysis as a graph is also possible while driving the vehicle, so you have the opportunity to directly observe the operation of selected parameters. Graphs have also undoubted advantage, that thanks to them, checking the correct operation of the subassembly becomes simple and clear.

TESTS

The basic and inseparable function during cars diagnostics. Thanks to which you can check whether a given component is working properly. The MaxiEcu software, using Tests, enables elements to be activated and checked – even if the controller doesn’t meet the conditions for the component to be switched on. The software forces switching on of a given component and thanks to this you can, for example, check the operation of the radiator fan even on a cold engine.

ADAPTATION

Function recommended for professionals. It’s use may require advanced knowledge, although using it with MaxiEcu is easy and legible. Adaptations could brings many benefits and allows us a regulation of many vehicle components, according to the user’s preferences. Few samples of use the function: DPF soot combustion, throttle adaptation, idle speed adjustment or reset the change oil indicator lamp.

CODING

If you are interested in changing the control unit settings, the coding is dedicated function in MaxiEcu to this. The codings are used to enable or disable specific functions. Thanks for it you can flexibly adjust options to specific equipment or vehicle model, eg change airbag configuration, adjust the windshield wipers’ work, change the language in the dashboard or coding the settings of daytime running lamps.

AUTOMATIC VEHICLE SCAN

A convenient and very easy to use function that allows you to get a quick analysis of the current state of the vehicle. After using Automatic vehicle scan, you get a full picture with the result of diagnostics of all systems displayed in the list for the selected car model. This software option allows also to simultaneous, automatic errasing of registered faults during scanning. In the end you can generate the diagnostic report which will show entire done process.

DRIVERS INFORMATION

If you want to know the detailed control unit data and get the opportunity to view information about the diagnosed system – use the Identification function. This option will allow you to obtain detailed information about the ECU, eg the date of production, the date of the last visit at the service, engine code, part numbers or equipment versions. These data will allow you, for example, to order spare parts according to control unit data, identify the presence of specific equipment parts in the car you intend to buy or to verify the correct component selection.
